Open Mouth Barrels

PPIPL has a wide variety of open-mouthed (full-open top) containers for filling powders, granular or paste-type goods. Available in a complete range of 6 to 210 litre sizes, they can be easily opened and closed. The lid incorporates a rubber gasket and a galvanized iron or plastic closing clamp. In addition to this, drop side handles are provided as a standard fitting on containers of 6 – 120 litre sizes.

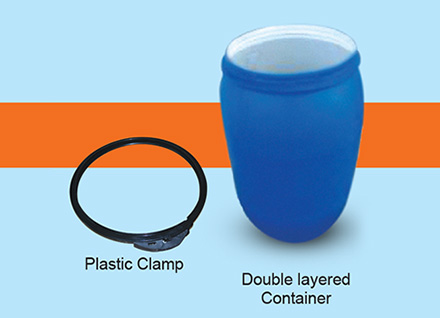

We also manufacture double-layered containers for added strength and better aesthetic appeal.

We also provide plastic clamps which are completely rust/corrosion resistant.

S.No	Code	Capacity litres	Dia/LxW (mm)	Height (mm)	Mouth size (mm)	Std weight (Kg)
1	OMB 6	6	194 +/- 5	285 +/- 5	130 +/- 5	0.7

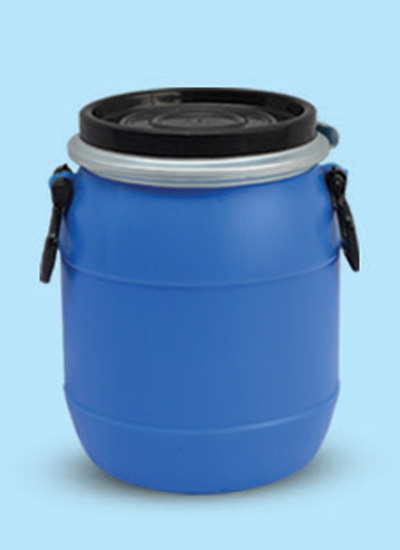

2	OMB 10	10	240 +/- 5	320 +/- 5	180 +/- 5	1.0

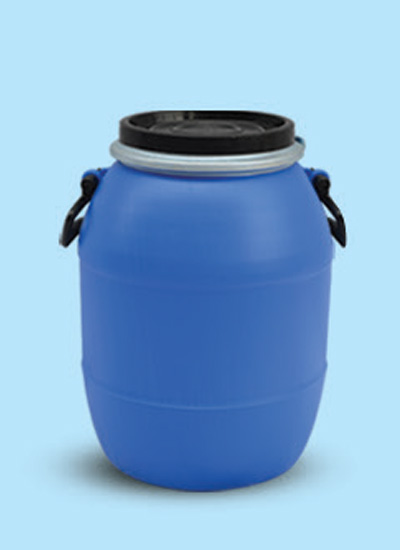

3	OMB 20	20	298 +/- 5	410 +/- 5	180 +/- 5	1.4

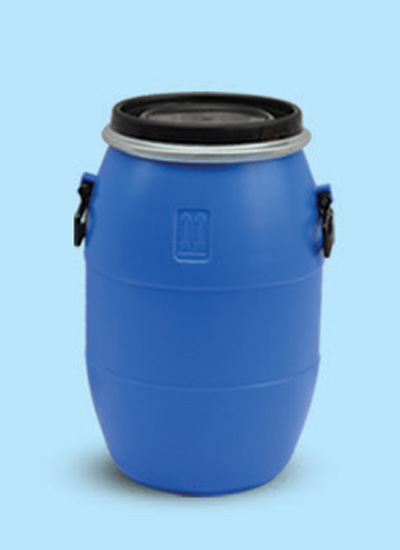

4	OMB 30	30	335 +/- 5	525 +/- 10	245 +/- 5	1.8

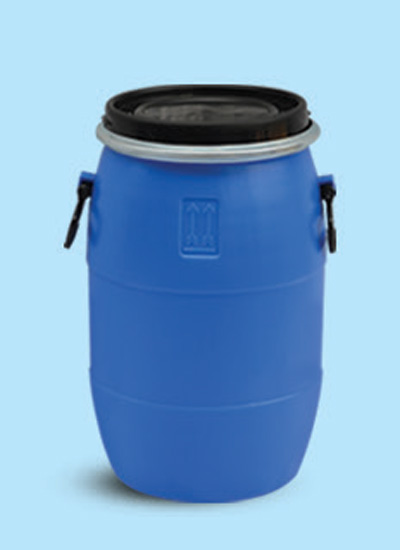

5	OMB 30 New	30	315+/-10	525 +/- 10	240 +/- 10	1.8

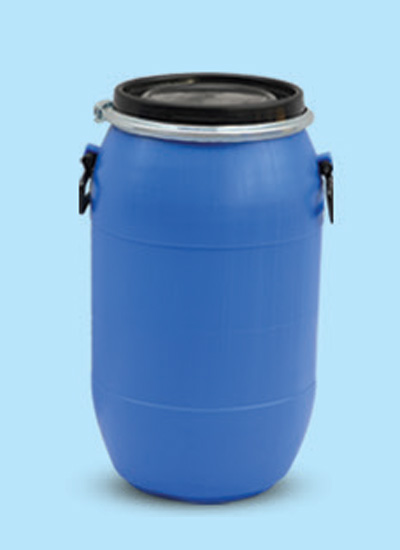

6	OMB 40	40	335 +/- 5	595 +/- 10	245 +/- 5	2, 2.2, 2.5

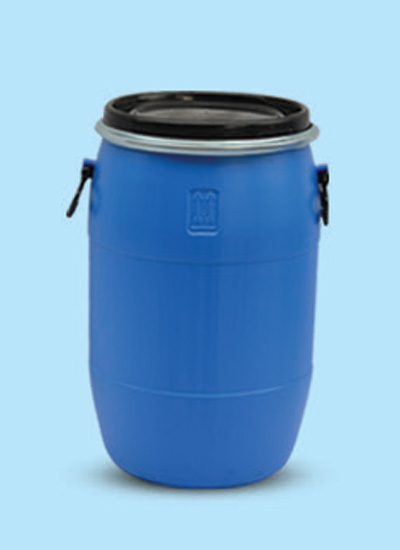

7	OMB 50	50	380 +/- 5	615 +/- 10	315 +/- 5	2.8

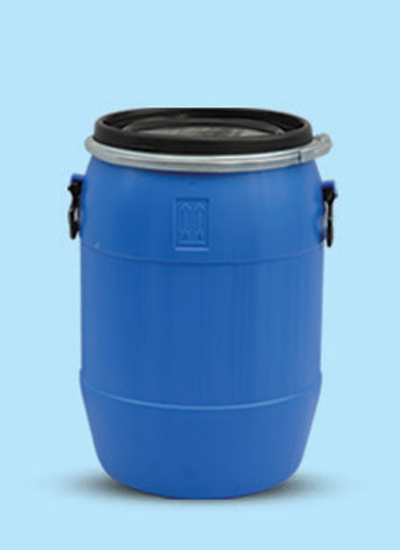

8	OMB 50 New	50	380 +/- 10	575 +/- 10	315 +/- 10	2.8

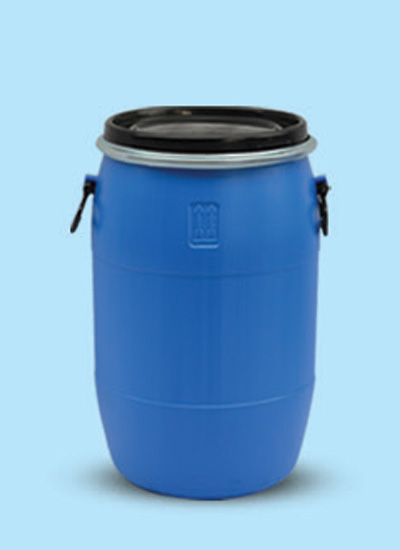

9	OMB 60	60	380 +/- 5	650 +/- 10	315 +/- 5	3.0

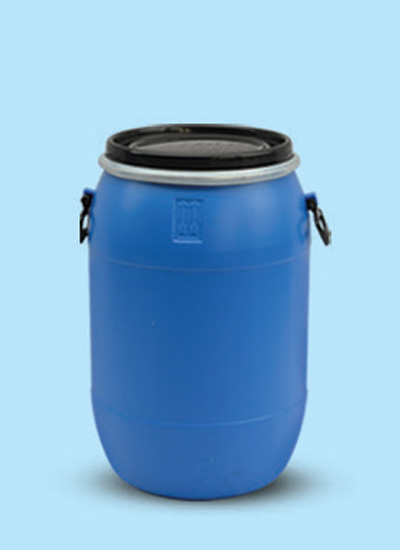

10	OMB 65	65	405 +/- 5	645 +/- 10	315 +/- 5	3.0

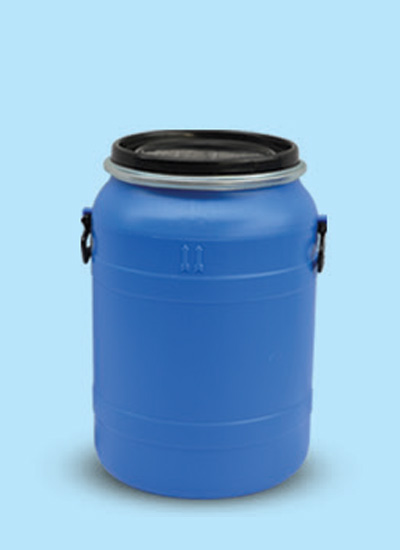

11	OMB 65 New	65	415 +/- 10	630 +/- 10	315+/- 10	3.1

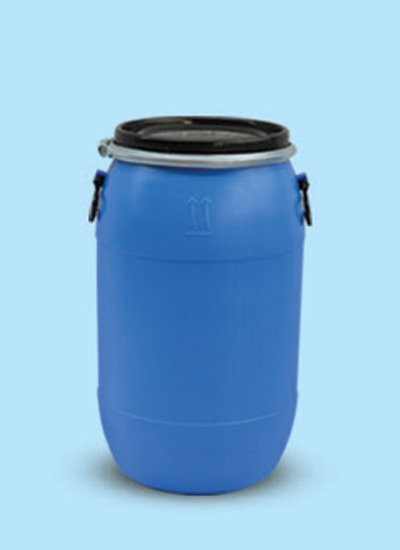

12	OMB 70	70	410 +/- 5	695 +/- 10	315 +/- 5	3.5

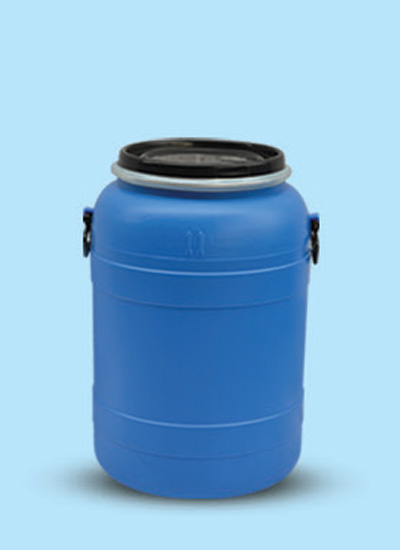

13	OMB 80	80	455 +/- 10	675 +/- 10	310 +/- 5	4.0

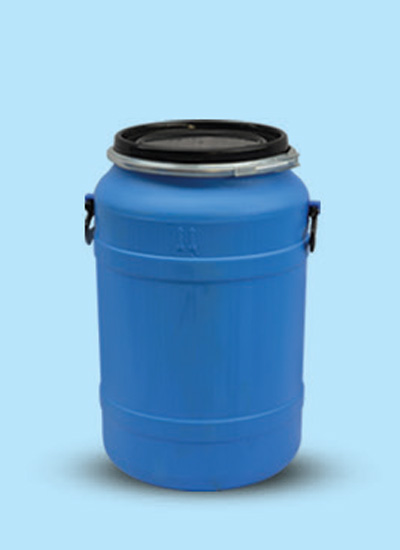

14	OMB 80 New	80	419 +/- 10	710 +/- 10	315 +/- 10	3.5

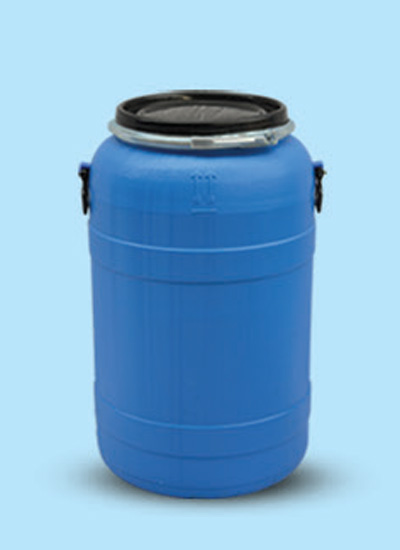

15	OMB 100	100	455 +/- 10	750 +/- 10	310 +/- 5	4.5

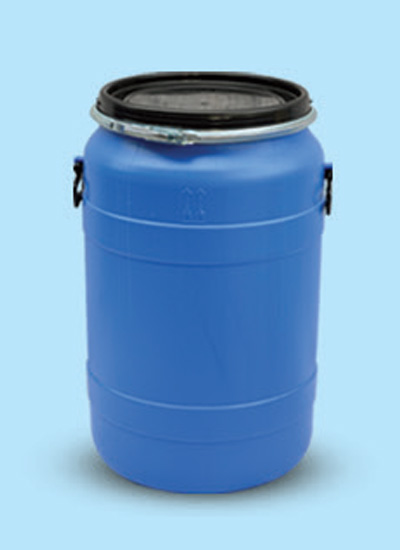

16	OMB 100 New	100	478 +/- 10	773 + /- 10	390 +/- 10	5.3

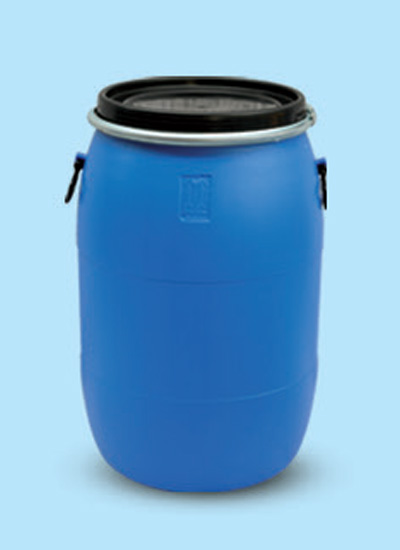

17	OMB 120	120	500 +/- 10	780 +/- 10	375 +/- 5	5.3

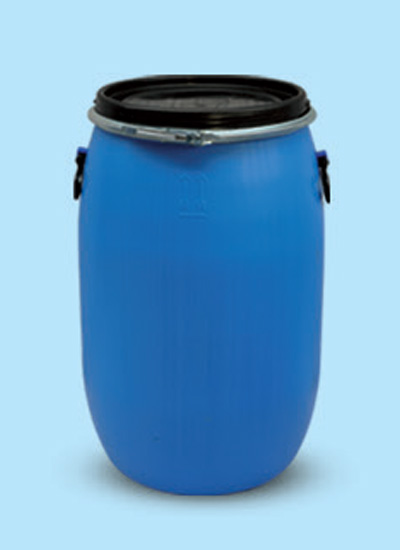

18	OMB 120 New	120	494 +/- 10	790 +/-10	390 +/- 10	5.3

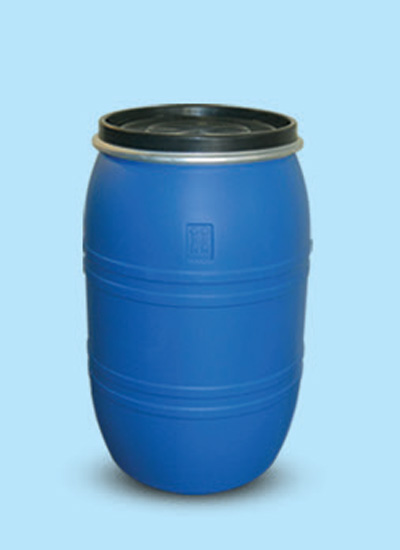

19	OMB 210	210	585 +/- 10	960 +/- 10	460 +/- 7	8.2

Salient Features

Plastic clamps to avoid rusting and corrosion
Odourless, corrosion-free, and non-toxic
Excellent lid seal to safeguard purity of contents
Safe and efficient to handle
Food grade compatible
Moulded single piece, no welds & points
Totally leak-proof
The designs conform to universally accepted IMDG (International Maritime Dangerous Goods) Code 6312 and approved by the IIP (Indian Institute of Packaging)
Varying options for cost effectiveness
Screen printing can be done
